Construction: Double-walled, horizontal cylindrical chamber made of high-grade stainless steel (SS 304/316).
-
Capacity: Available in sizes ranging from 100 liters to 500 liters (or customized as per requirement).
-
Jacket: Outer jacket for uniform steam distribution and minimized heat loss.
-
Insulation: High-grade insulation with heat-resistant material to reduce energy consumption.
-
Doors: Radial locking system/hinged door with safety locking arrangement.
-
Pressure Range: Operates between 15–22 psi (1.0–1.5 kg/cm²).
-
Temperature Range: 121°C – 134°C (adjustable).
-
Heating System: Electrically heated / steam heated (as required).
-
Controls: Automatic pressure control with pressure gauge, temperature indicator, and safety valves.
-
Safety Features:
-
Automatic pressure cut-off system
-
Low water level cut-off device
-
Safety valve against over-pressure
-
-
Accessories: Perforated baskets, drain valve, steam trap, and vacuum breaker.
-
Finish: Polished stainless steel (internal) and matte finish (external) for durability and hygiene.
Sterilization Equipments

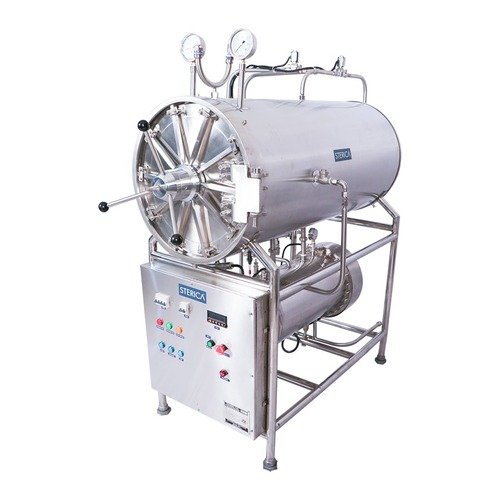

Horizontal Sterilizer
The Horizontal Sterilizer is a high-capacity, fully reliable sterilization solution designed for hospitals, research labs, and pharmaceutical applications. Engineered for consistent performance, it ensures complete sterilization of surgical instruments, dressings, glassware, and laboratory equipment. With durable construction, advanced safety features, and user-friendly operation, it is an ideal choice for facilities that demand efficiency and sterility on a large scale.
